- Waga
- 1 kg
- Gniazdo procesora
- Socket AM4 (1331)
- Obsługiwane typy procesorów
- AMD Ryzen™
- AMD Athlon™ (AM4)
- Uwagi do procesora
- Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and
- 5000 G-Series Desktop Processors
- Digi Power design
- 10 Power Phase design
- Format płyty
- Micro-ATX
- BIOS
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- Chipset płyty głównej
- AMD B450
- Ilość złącz pamięci DDR4
- 4
- Maksymalna wielkość pamięci
- 128 GB
- Tryb pracy pamięci RAM
- Dual Channel
- Standard pamięci
- DDR4-2133
- DDR4-2400
- DDR4-2666
- DDR4-2933
- DDR4-3200
- Uwagi do pamięci RAM
- AMD Ryzen series CPUs (Vermeer) support DDR4 3200/2933/2667/2400/2133
- AMD Ryzen series CPUs (Matisse) support DDR4 3200/2933/2667/2400/2133
- AMD Ryzen series APUs (Cezanne) support DDR4 3200/2933/2667/2400/2133
- AMD Ryzen series APUs (Renoir) support DDR4 3200/2933/2667/2400/2133
- AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC)/2933(OC)/2667
- /2400/2133
- AMD Ryzen series CPUs (Picasso) support DDR4 2933/2667/2400/2133
- AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC)/2933(OC)/2667/
- /2400/2133
- AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC)/2933/2667/2400/
- /2133
- Supports ECC & non-ECC un-buffered memory
- Supports Extreme Memory Profile (XMP) memory modules
- 15µ Gold Contact in DIMM Slots
- For Ryzen Series APUs (Picasso, Cezanne, Renoir and Raven Ridge), ECC is
- only supported with PRO CPUs
- Zintegrowany kontroler SATA
- Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10 + 1x Ultra M.2
- Uwagi do kontrolera SATA
- 4 x SATA3: NCQ, AHCI and Hot Plug
- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI
- Express module up to Gen3 x4 (32 Gb/s) (with Vermeer, Matisse, Cezanne,
- Renoir, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2
- (16 Gb/s) (with Athlon series APU)*
- *Supports NVMe SSD as boot disks
- Supports ASRock U.2 Kit
- Wbudowana karta graficzna
- Brak lub AMD Radeon R-Series/Vega (zależy od procesora)
- Gniazda karty graficznej
- HDMI
- Uwagi do karty graficznej
- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU
- DirectX 12, Pixel Shader 5.0
- Shared memory default 2GB. Max Shared memory supports up to 16GB
- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 24Hz /
- (3840x2160) @ 30Hz
- upports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate
- Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
- Supports HDCP 1.4 with HDMI 1.4 Port
- Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port
- Actual support may vary by CPU
- The Max shared memory 16GB requires 32GB system memory installed
- Zintegrowana karta dźwiękowa
- Realtek® ALC 892/897 8-Channel High Definition Audio CODEC
- Gniazda karty dźwiękowej
- Wewnętrzne gniazdo audio przedniego panelu
- 3x Audio Jack
- Uwagi do karty dźwiękowej
- Supports Surge Protection
- Złącza PCI Express x16
- 2
- Uwagi do złącz PCI
- AMD Ryzen series CPUs (Vermeer, Matisse, Cezanne, Renoir, Summit Ridge and
- Pinnacle Ridge):
- - 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)
- - 1 x PCI Express 2.0 x16 Slot (PCIE2: x4 mode)
- AMD Ryzen series CPUs (Picasso, Raven Ridge):
- - 1 x PCI Express 3.0 x16 Slot (PCIE1: x8 mode)
- - 1 x PCI Express 2.0 x16 Slot (PCIE2: x4 mode)
- AMD Athlon series CPUs
- 1 x PCI Express 3.0 x16 Slot (PCIE1: x4 mode)
- - 1 x PCI Express 2.0 x16 Slot (PCIE2: x4 mode)
- Supports AMD Quad CrossFireX™ and CrossFireX™
- Supports NVMe SSD as boot disks
- Port LAN
- 1x Gigabit LAN 100/1000 Mb/s (Realtek® 8111H)
- Uwagi do karty sieciowej
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
- Maksymalna ilość portów USB 2.0
- 6
- Maksymalna ilość portów USB 3.x
- 6
- Porty USB na panelu tylnym
- 2x USB 2.0 + 4x USB 3.0
- Gniazda USB na płycie głównej
- 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty)
- Port Wi-Fi
- IEEE 802.11a/b/g/n/ac
- Port Bluetooth
- Bluetooth V4.2
- Uwagi do WiFi / BT
- Intel® 802.11ac WiFi Module
- Supports Dual-Band (2.4/5 GHz)
- Supports high speed wireless connections up to 433Mbps
- Supports Bluetooth 4.2 / 3.0 + High speed class II
- Port PS/2
- Brak
- Port szeregowy (COM)
- Brak
- Port równoległy (LPT)
- Brak
- Inne porty i gniazda
- Złącze czujnika otwarcia obudowy
- Power LED and Speaker Header
- RGB LED Header
- Addressable LED Header
- AMD Fan LED Header
- CPU Fan connector
- Chassis Fan connector
- AMD LED Fan USB Header
- 2x Antenna Ports
- Gniazdo zasilania
- ATX (24-pin) + ATX12V (8-pin)
- Wymiary [S x W] (mm)
- 244 x 244

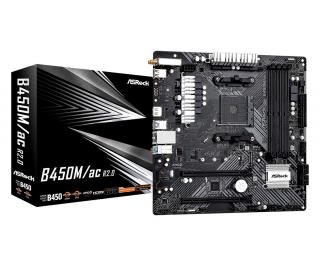

- Opakowanie
- BOX
- Wyposażenie dodatkowe
- I/O Shield
- 2 x SATA Data Cables
- 2 x ASRock WiFi 2.4/5 GHz Antennas
- 1 x Screw for M.2 Socket
- Zawiera baterię / akumulator
- Tak
- Informacje dodatkowe
- Microsoft Windows® 10 64-bit / 11 64-bit*
- *Summit Ridge do not officially support Windows® 11
- 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac PCIe WiFi
- module (on the rear I/O)
- Certifications: FCC, CE, ErP/EuP ready (ErP/EuP ready power supply is
- required)
